MACHINES

With our NC and CNC controlled machines, the most complicated requirements can be realized in perfect machining quality.

Machines and manufacturing

High-quality manufacturing does not allow any compromises. An optimally aligned production route is the basis for our precision work, because only in this way can we meet the high demands of our customers and our own standards. Our continuously developed in-house production is specialized in turning, milling and drilling operation of the highest quality with a focus on machining and surface finishing of difficult-to-machine materials. We are also happy to manufacture for you on a contract basis! No matter whether turning, milling or drilling.

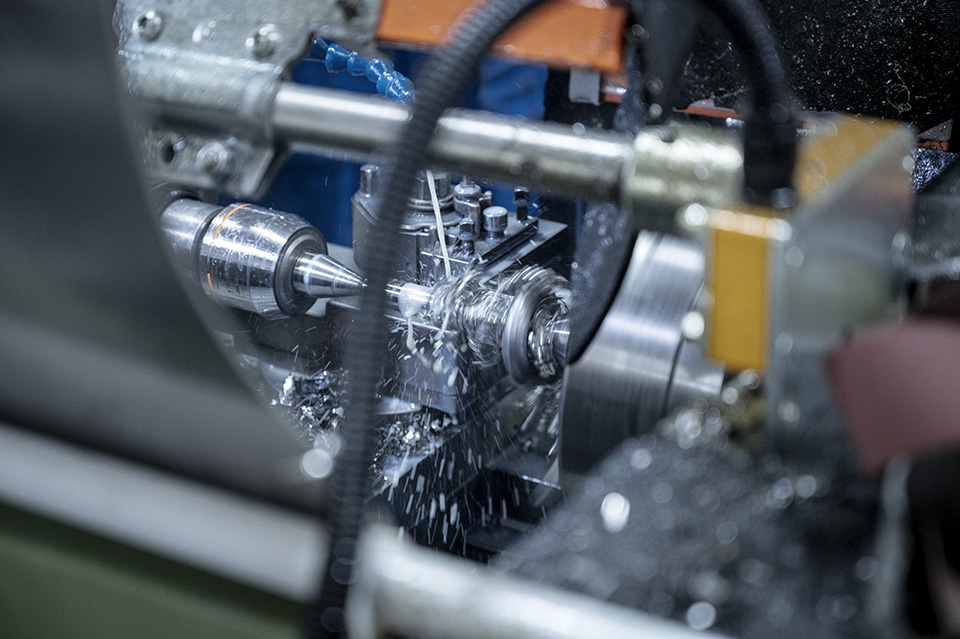

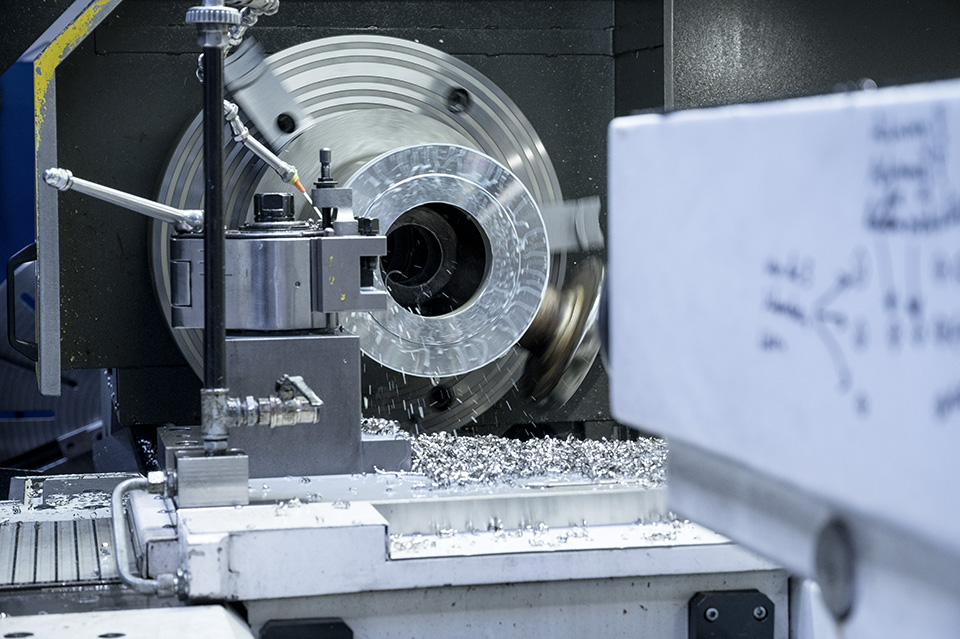

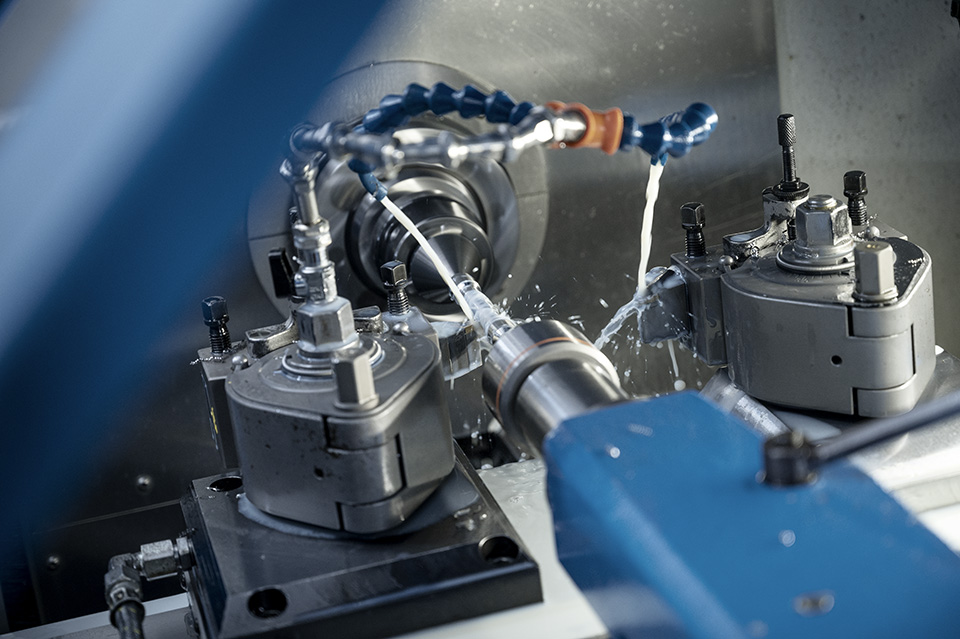

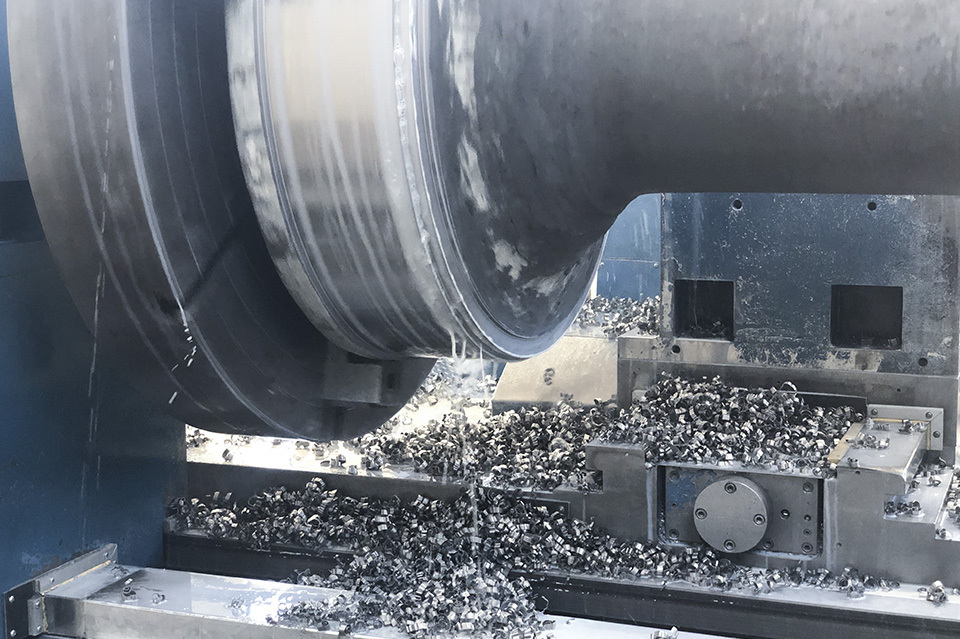

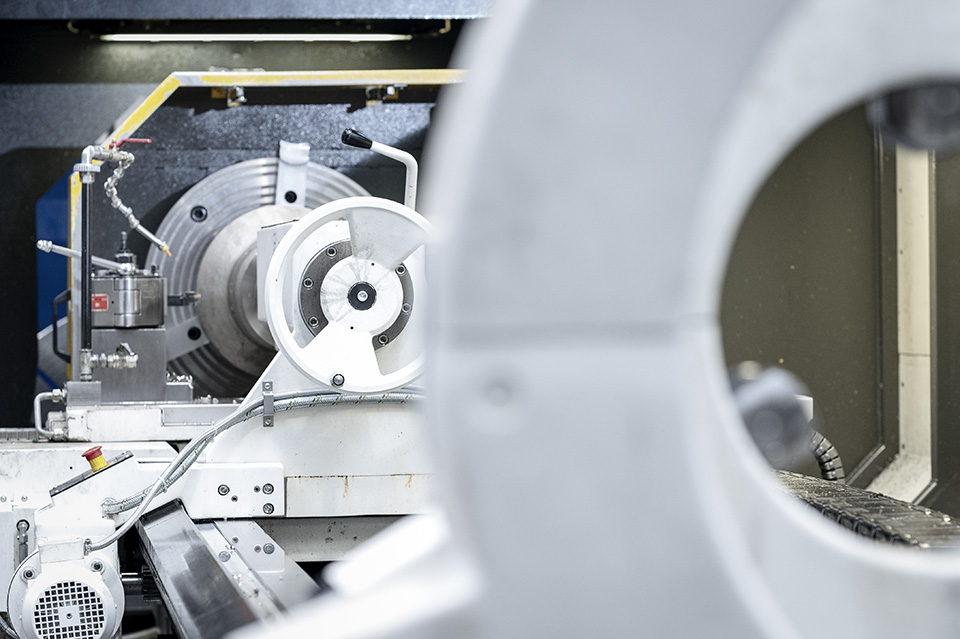

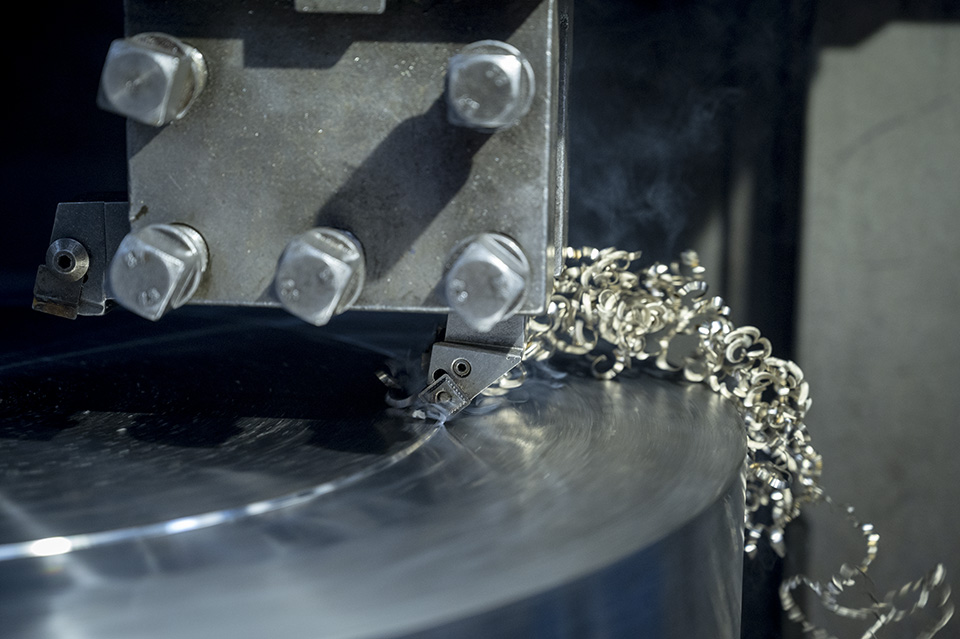

Turning

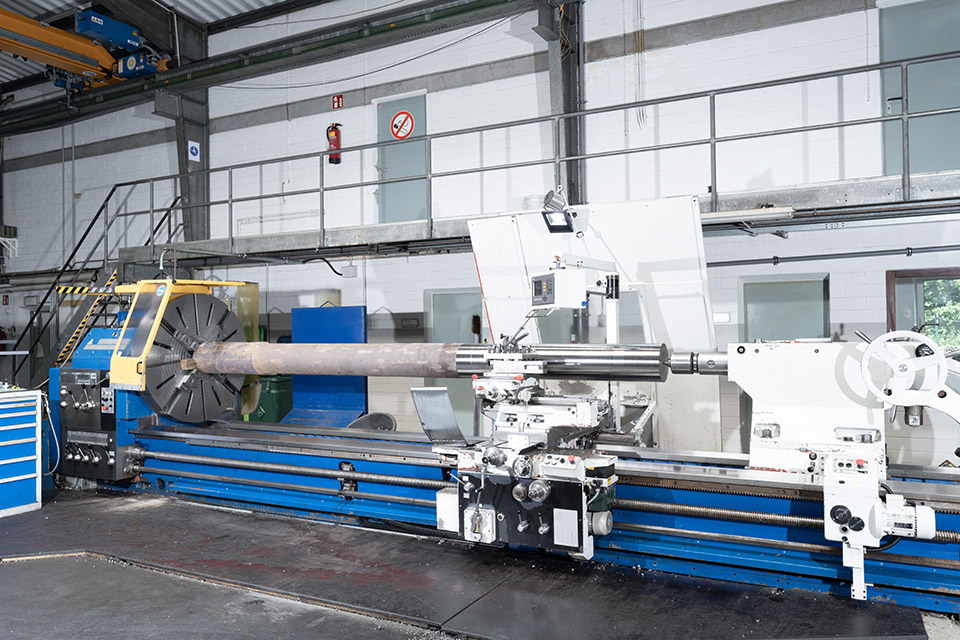

TOS SU 125 CNC

Center lathe

bed/slide

Ø1.250 / Ø840 x3.900 mm

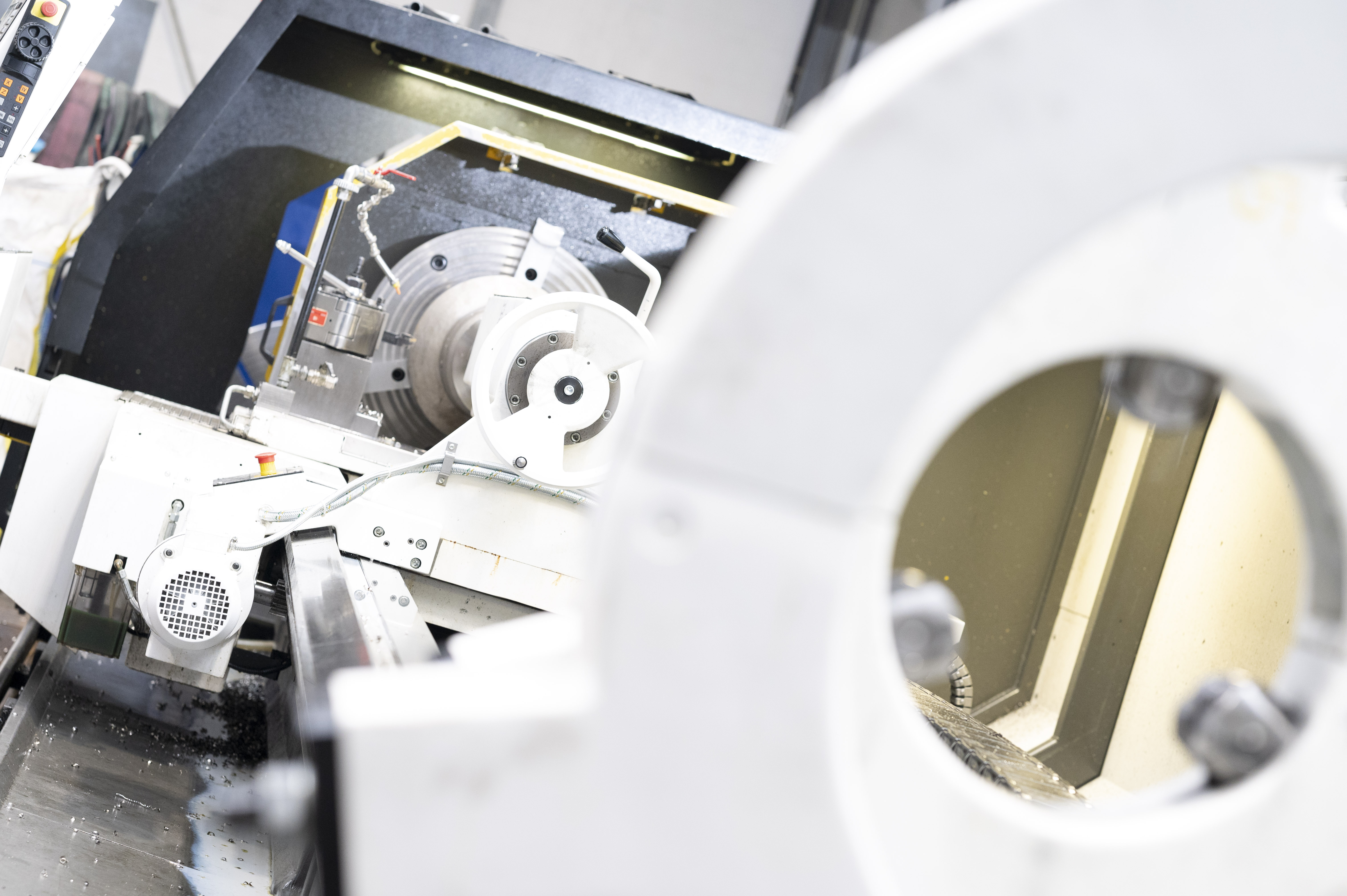

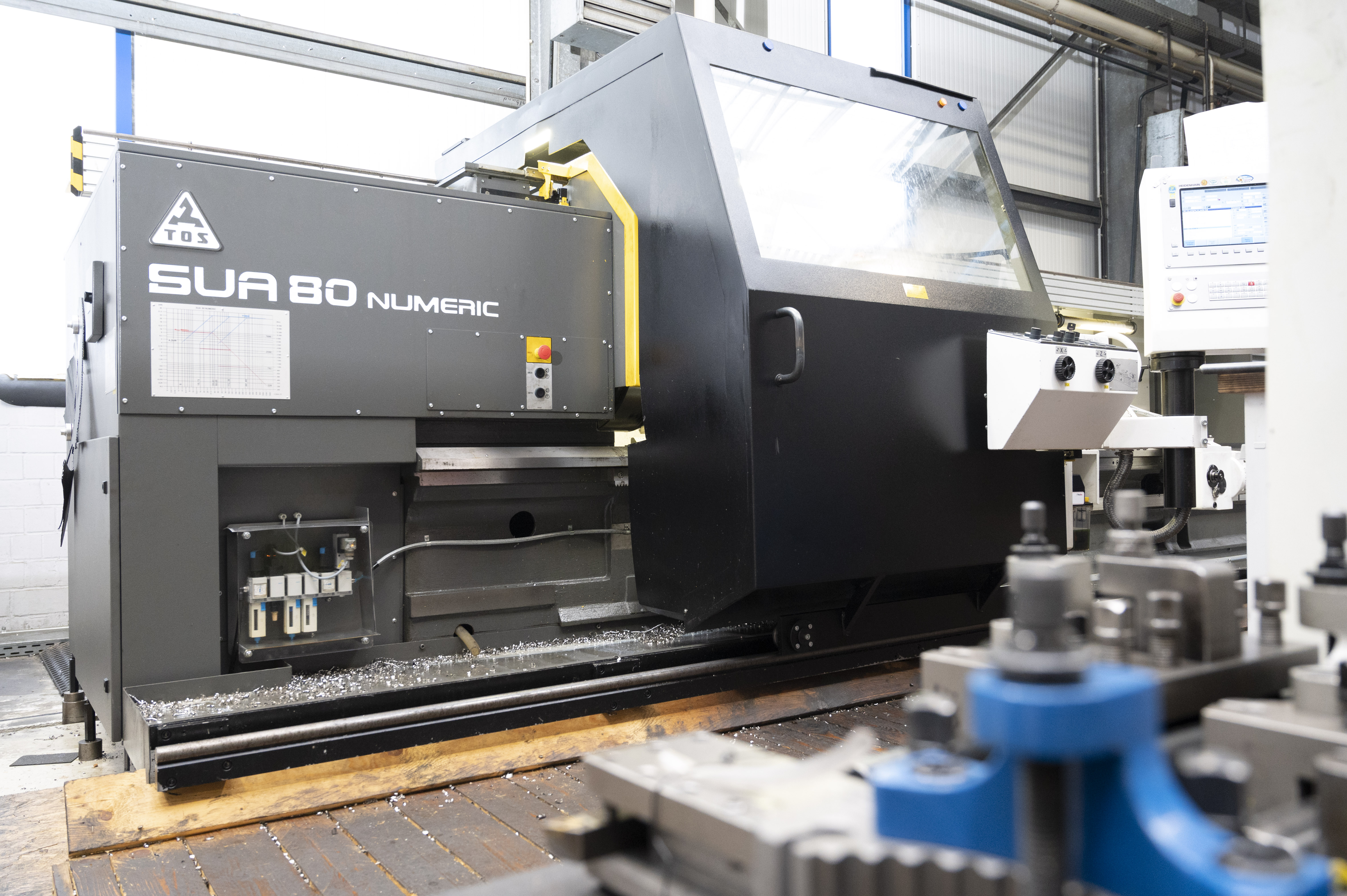

TOS SUA 80 CNC

Center lathe

bed / slide

Ø1.250 / Ø760 x 1.800 mm

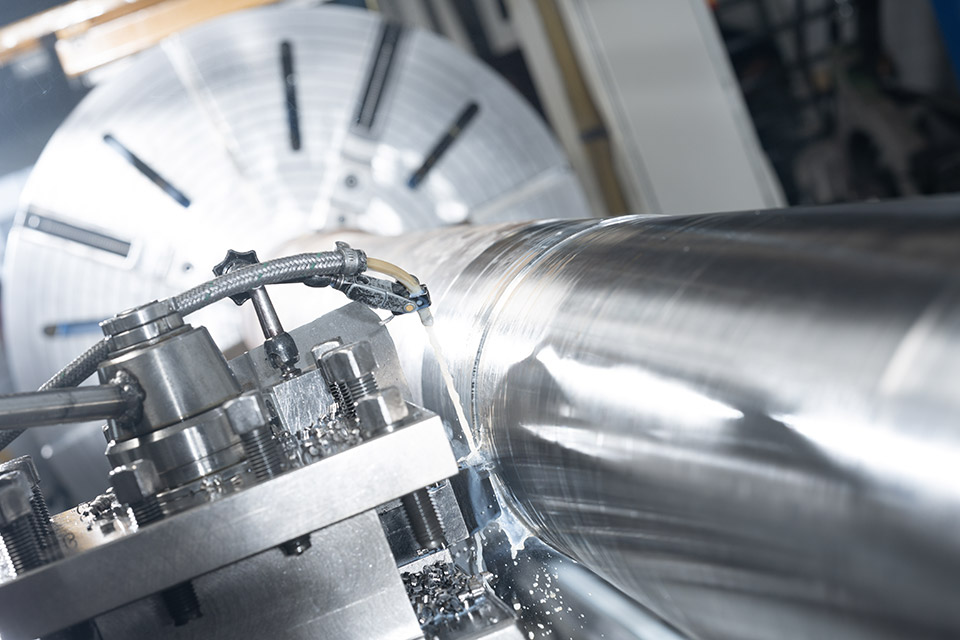

TOS SU 125 CNC

center lathe

bed/slide

Ø1.250 / Ø760 x1.800 mm

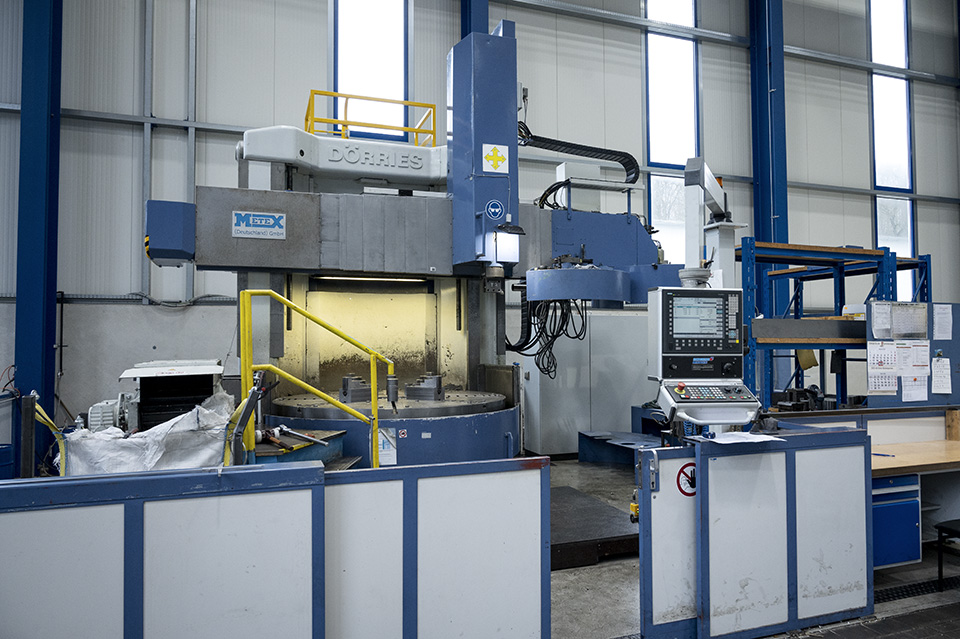

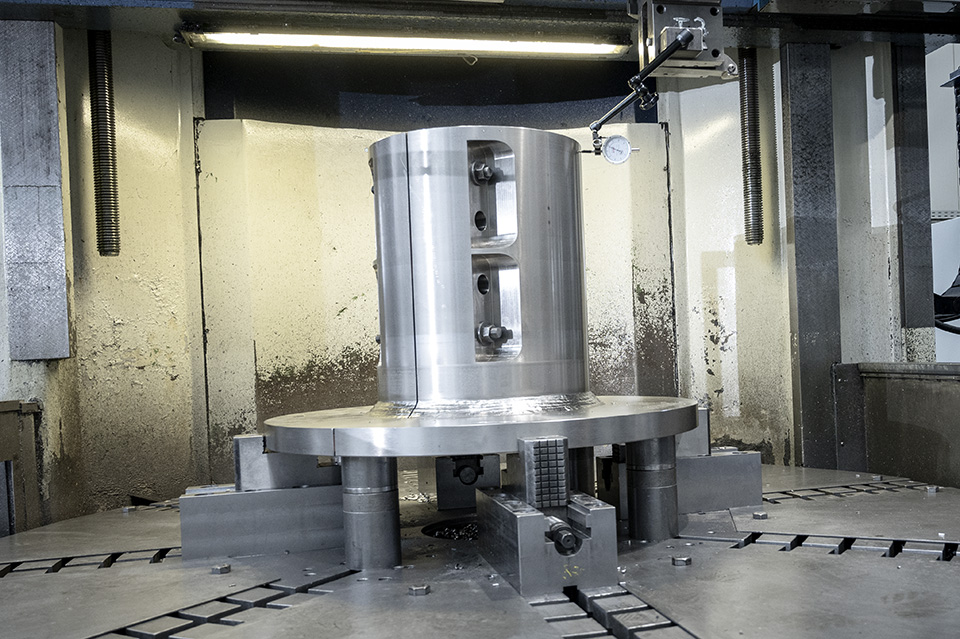

DÖRRIES CONTUMAT CT 200 CNC

Carousel lathe:

Ø2.300 / Ø2.000 x 1.000 mm

Table load 20T

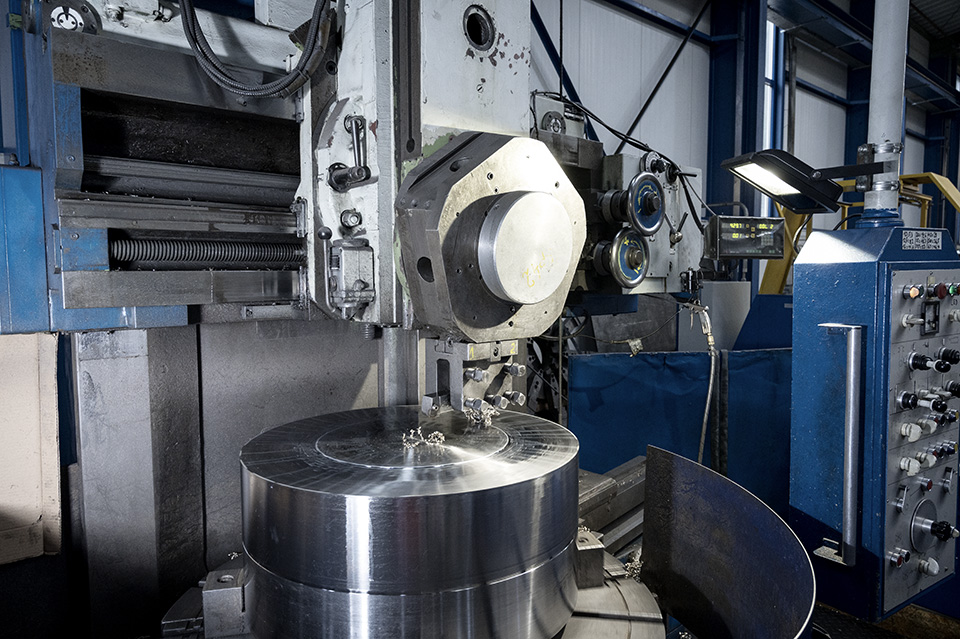

WEWAG Carousel

Carousel lathe

Ø1.380 / Ø1.100 x 1.000 mm

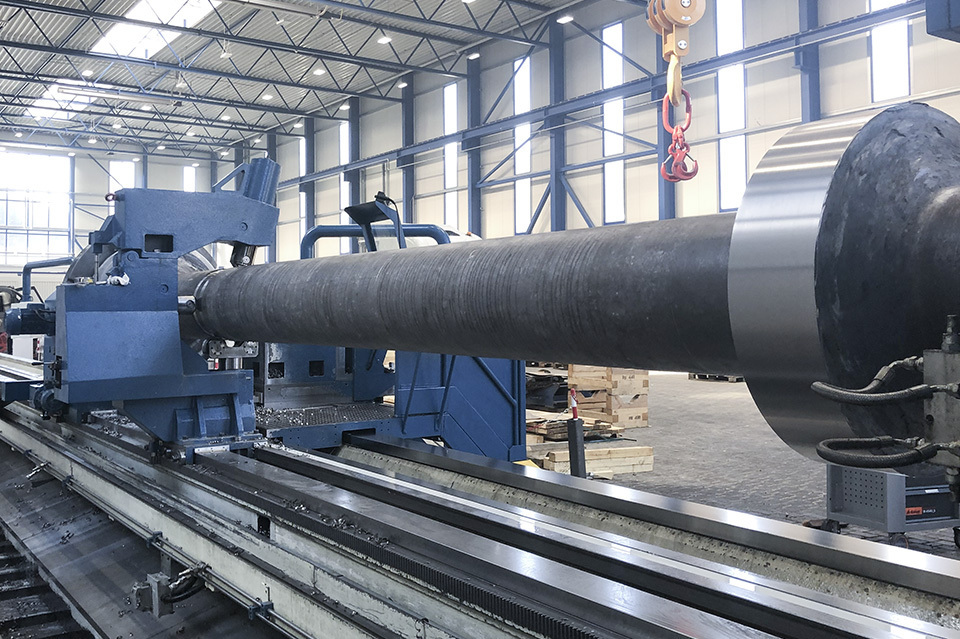

TACCHI HD/3 - 120 H CNC

long turning lathe

Bed / Slide:

Max. Ø1.400 mm

Max. Length 24.000 mm

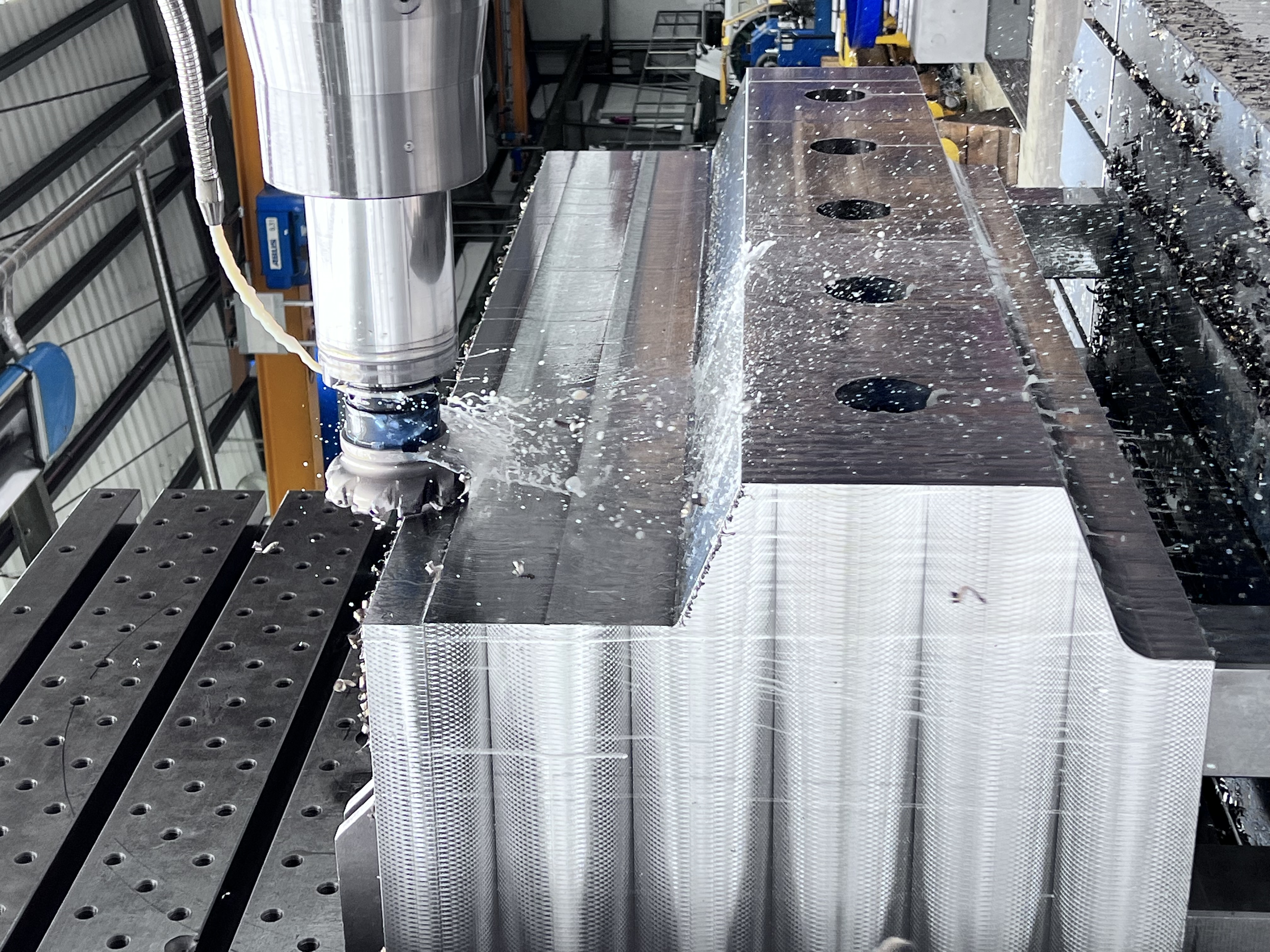

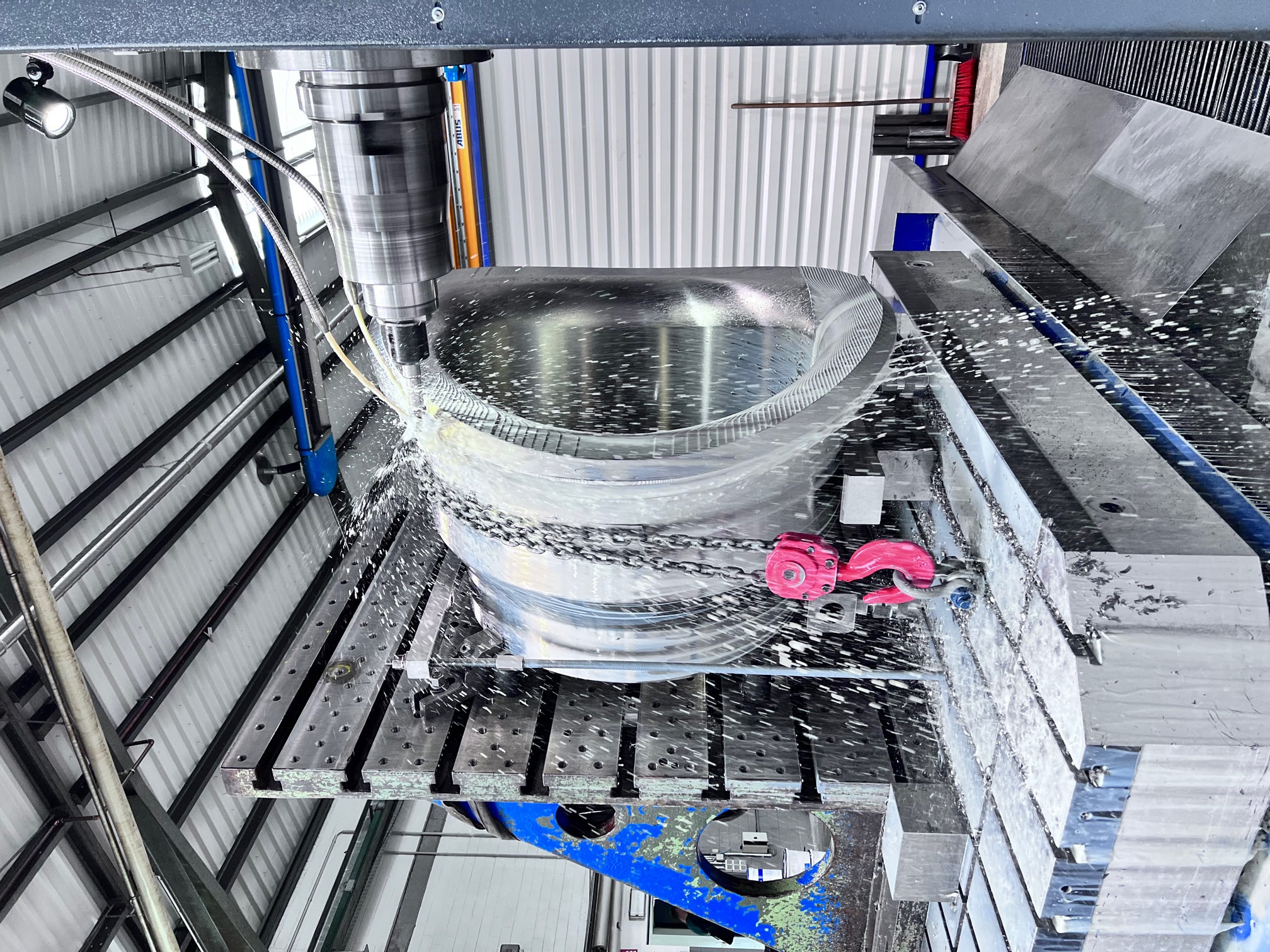

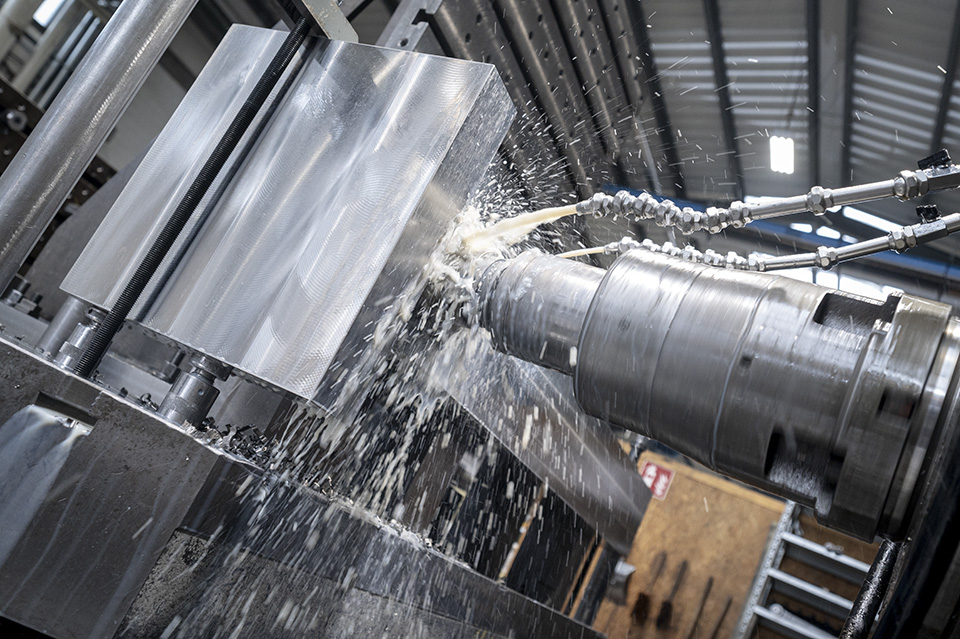

Milling

TOS WHN 13 CNC / 4 axes

able typ milling and boring

center  Travel:

X 5.000 mm Y 2.500 mm Z 1.250 mm





TOS WHN 13 CNC / 4 axes

table typ milling and boring

center Travel:

X 3.500 mm Y 2.500 mm Z 1.250 mm W 800 mm

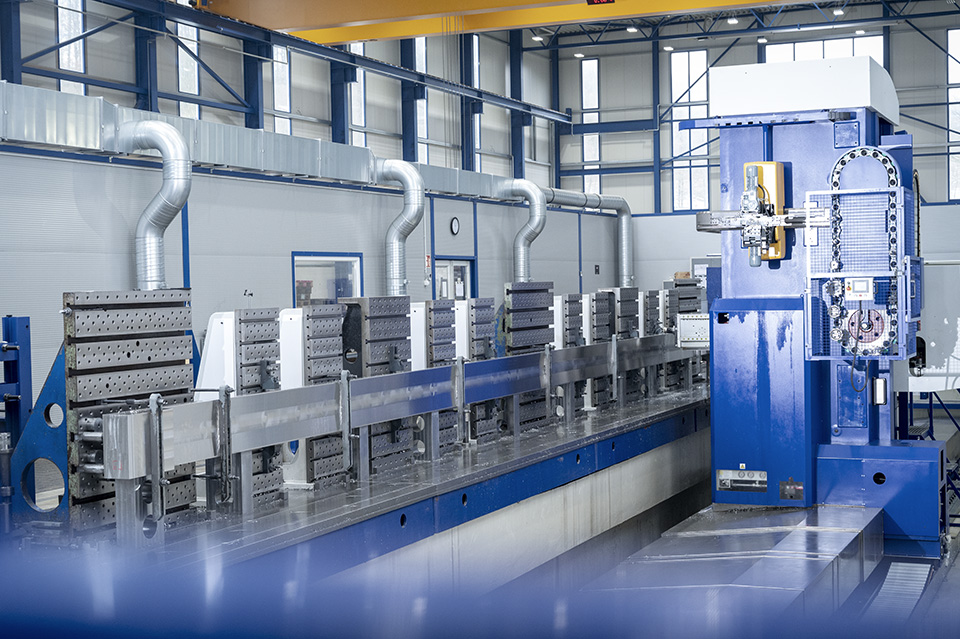

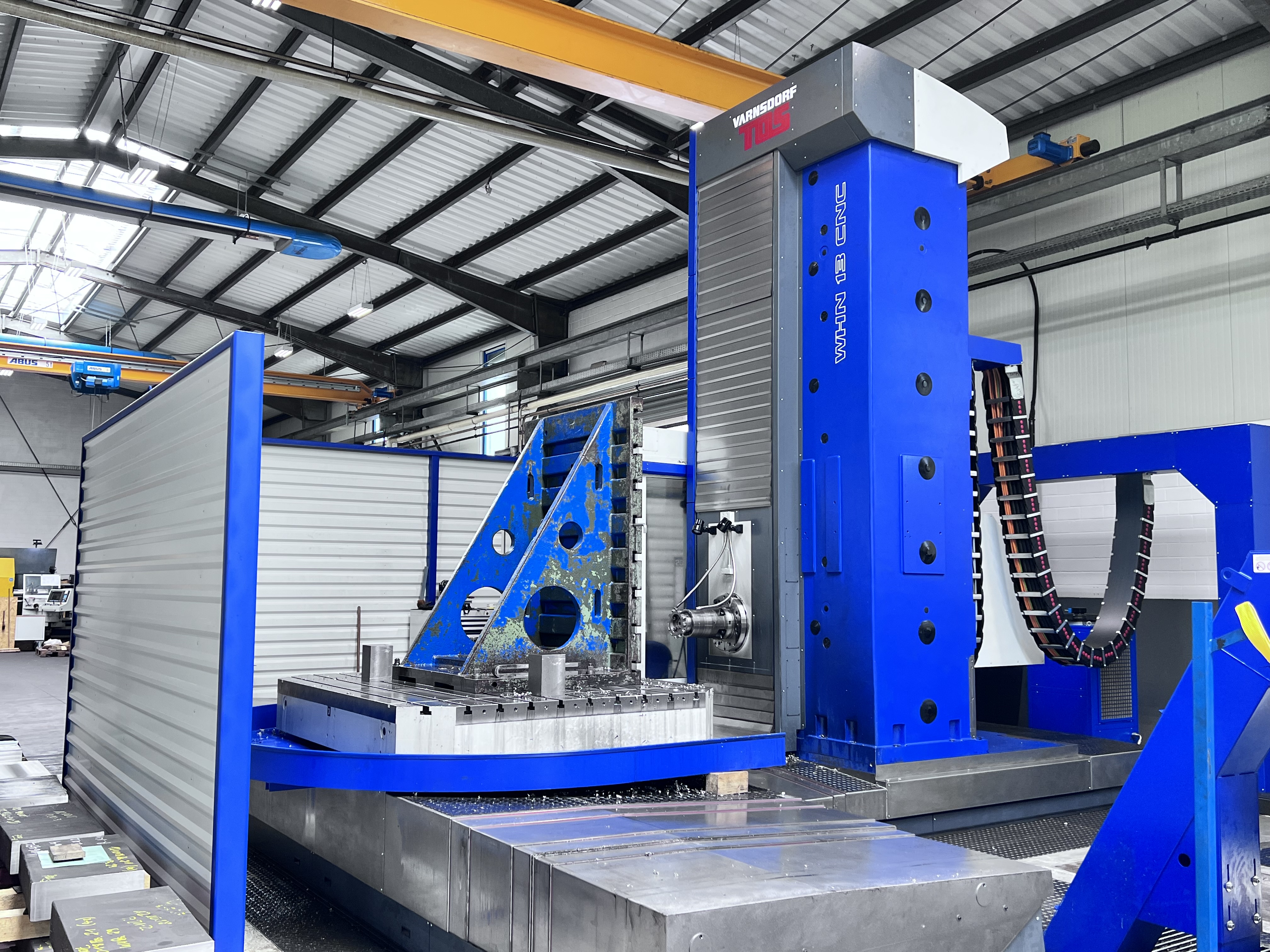

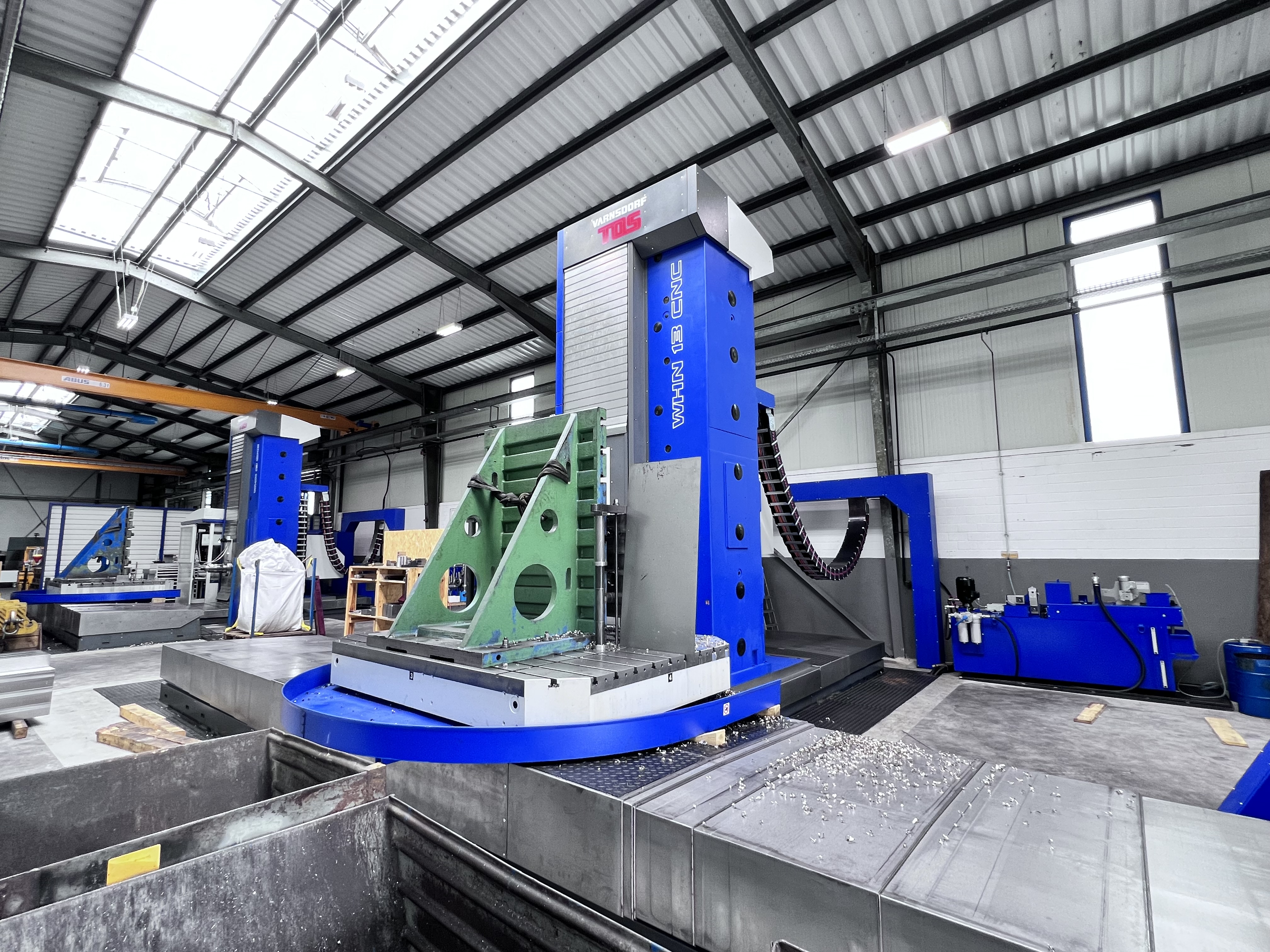

TOS WRD 170Q / 4 axes

horizontal floor typ boring mill

machine Travel:

X 13.000 mm Y 3.000 mm Z 1.500mm

Table size:

12.000 x 4.000 mm



TOS WRD 130Q / 4 axes

horizontal floorf typ boring mill

machine Travel:

X 25.000 mm, Y 2.500 mm, Z1.000 mm

Table size:

25.000 x 1.800 mm

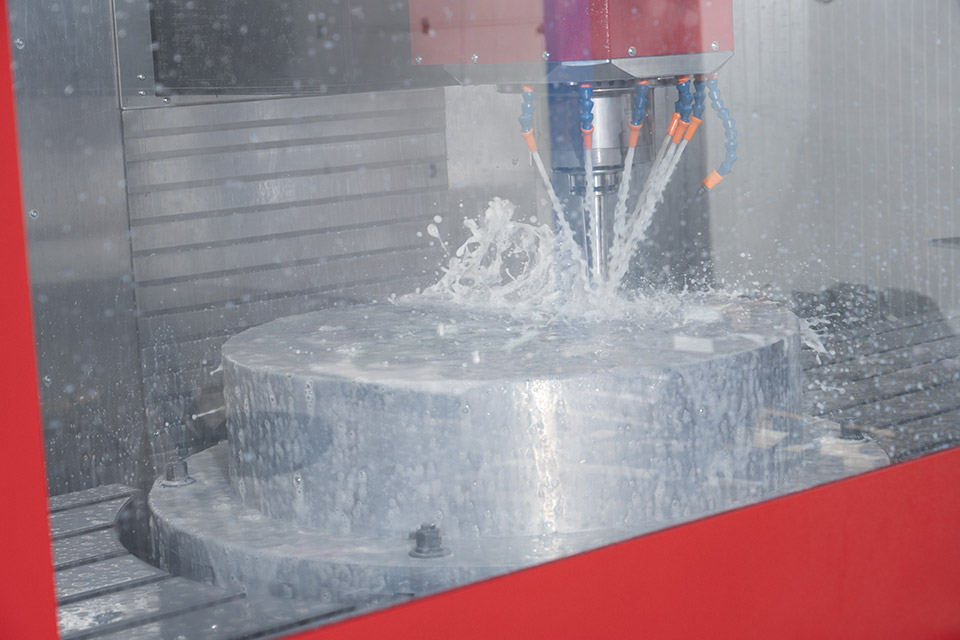

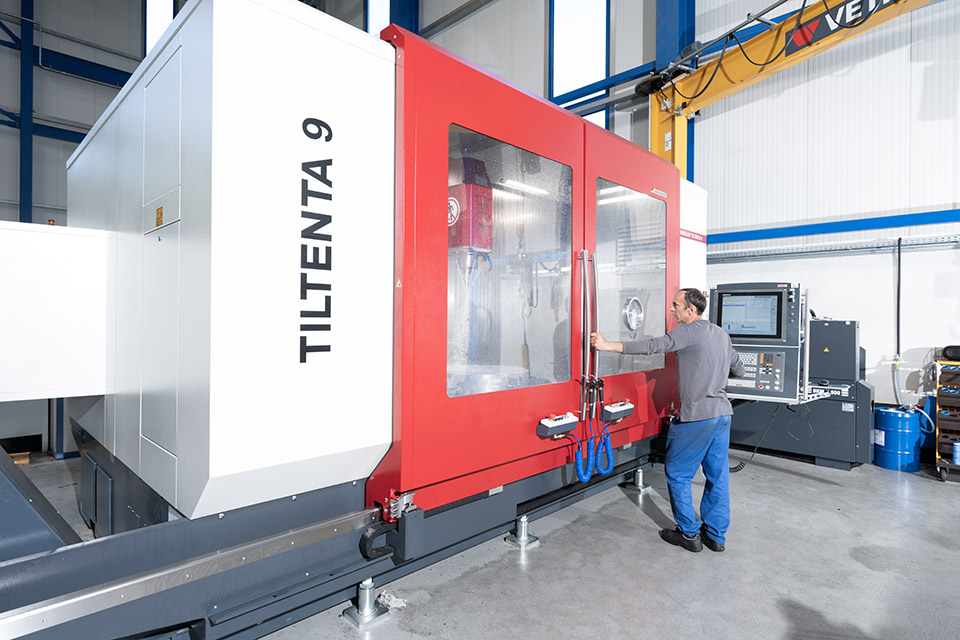

Hedelius TILTENTA 9-2600

Milling machine - 5 axes

Machine configuration:

X 2.600 mm Y 900 mm Z 1.050 mm

Bed / Slide: Ø900 mm

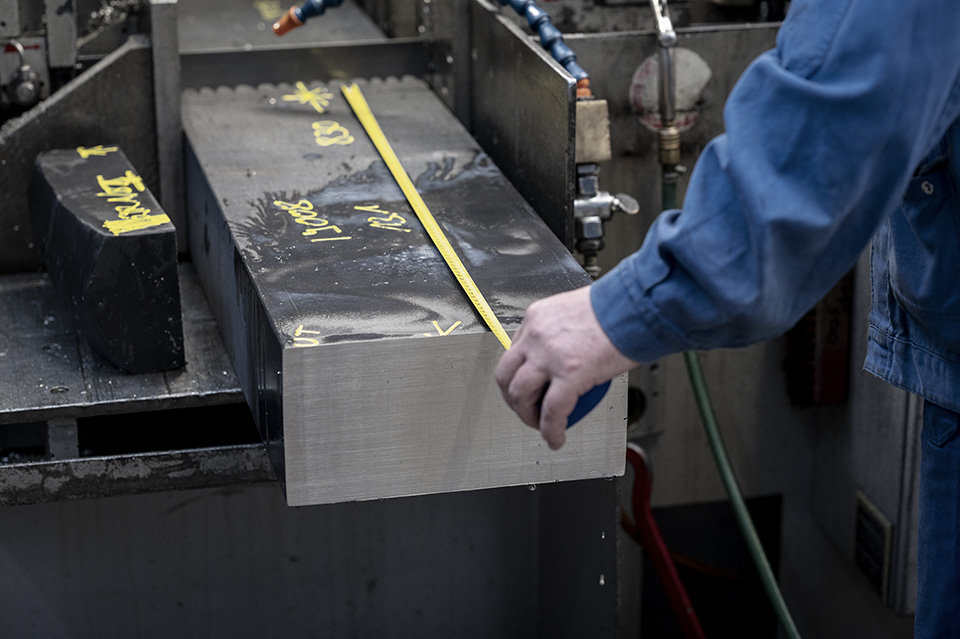

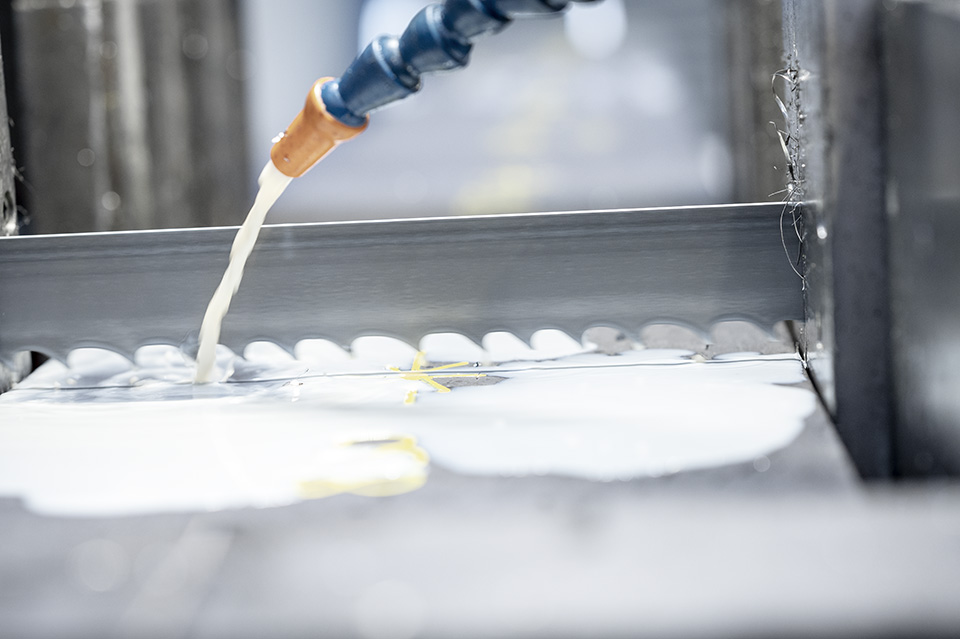

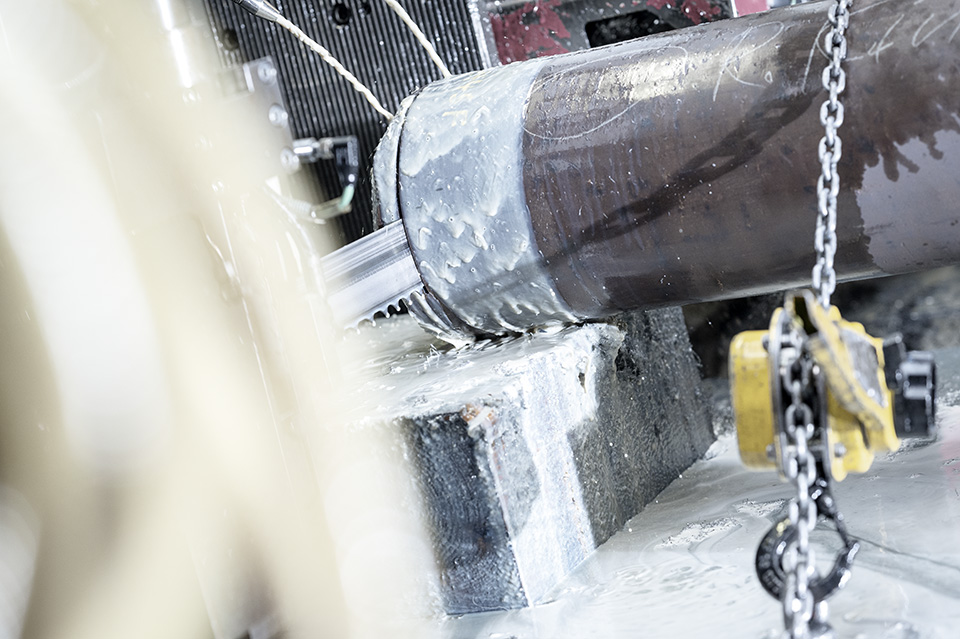

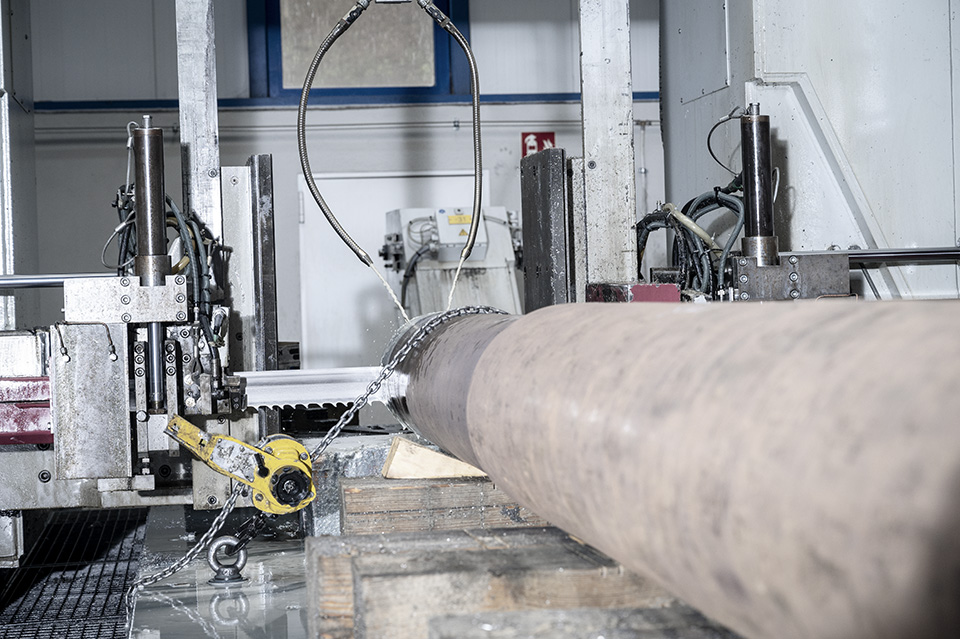

Saws

Behringer HBP 540 // Behringer HBM 370 A Automatic

bandsaw range:

up to Ø540 mm x 15,000 mm

Ø370 mm x 10,000 mm

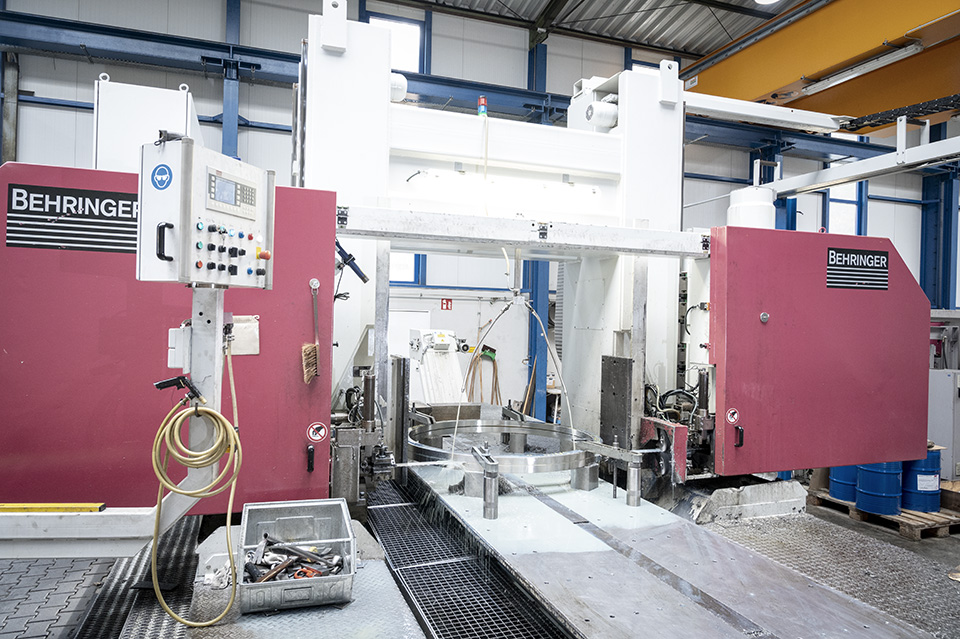

Behringer HBP 1300 Gantry

bandsaw (horizontal and vertical cuts)

Work table: 1.350 x 8.000 mm

Sawing area: 1.300 x 1.670 x 12.500 mm

Behringer HBP 1300 Gantry

bandsaw (horizontal and vertical cuts)

Work table:

1.350 x 8.000 mm

Sawing area:

1.300 x 1.670 x 10.000 mm

Sample Workshop

Seiger SLZ-300E

CNC center lathe

Bed / Slide:

Ø300 / Ø150 x 750 mm

Additional machines

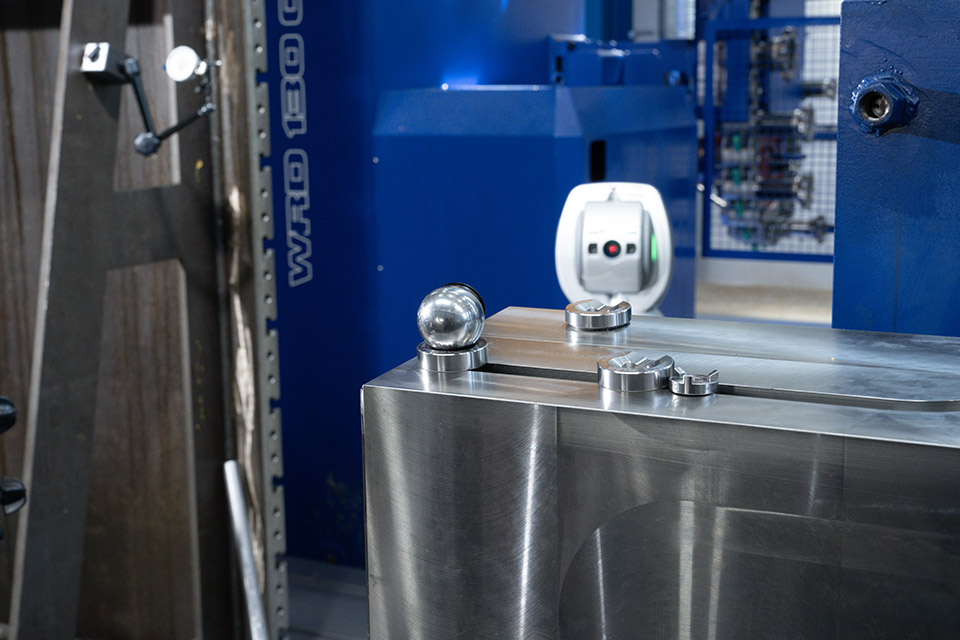

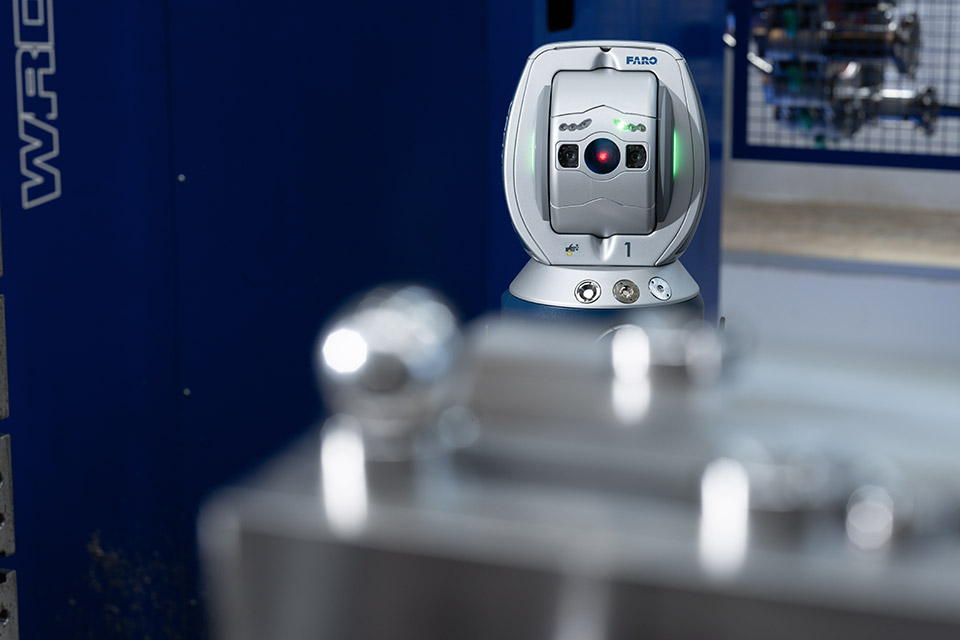

FARO Vantage

3D Laser Tracker

Portable coordinate measuring system

Altitude range: -700 - 9,000 m

Operating temperature: -15°C - 50°C

Resolution: 0.5 µm Scan speed: 16,000 points / second

Accuracy (MPE): 16 µm +0.8 µm/m

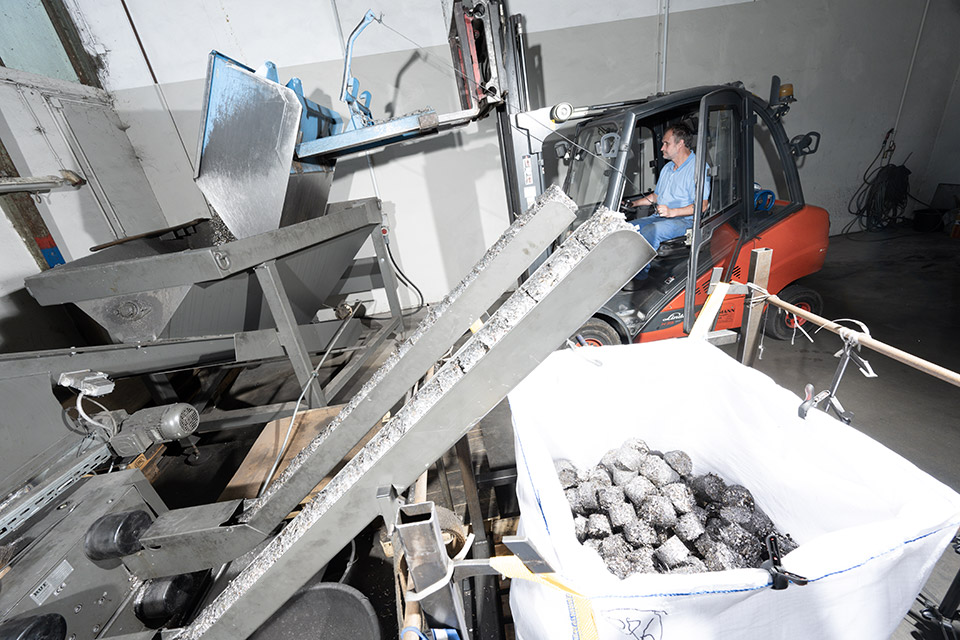

Chip Briquetting System

RUF PB 30/3800/100

Briquette size Ø100 x 50

PT testing facility

size 8.000 x 4.000 mm
